Scaffoldings

INDUSTRIAL SCAFFOLDING SYSTEMS & MANUFACTURING SOLUTIONS

Modular & Frame Scaffolding for International Infrastructure and Construction

We manufacture structural scaffolding systems for construction contractors, equipment rental fleets, and industrial maintenance providers worldwide. Engineered to comply with global engineering standards, our products utilize structural-grade carbon steel (Q235/Q355), robotic welding, and ISO 1461 hot-dip galvanized finishes to ensure long-term durability and structural reliability on demanding job sites.

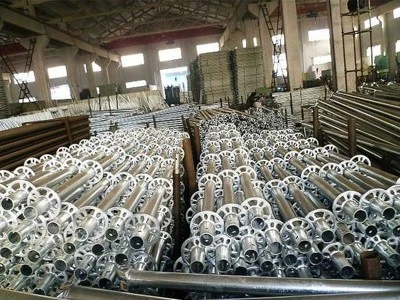

Ringlock Scaffolding
Ringlock scaffolding vertical is a direct plug-in pipe scaffolding with self-lock function. It’s the most popular scaffolding in the current construction market. Also known as Layher scaffolding.
Adjustable Screw Jack
The ajustable Screw Jack is the adjustable base for modular system scaffolding. It is used as the starting bases for scaffolding. It can be adjusted in height to compensate for uneven surfaces so
Screw Jack With Swivel Base Level Jacks
Screw Jack with Swivel BaseThe screw jack with swivel base is used as a starting base for a scaffold. . It is adjustable in height and angle to allow for compensation on uneven surfaces so that a
Swivel Screw Base Jack
This swivel base jack is widely compatible with various steel scaffolding systems, including coupler, cuplock, ringlock, quick-lock and frame scaffolding. Our swivel base screw jacks deliver

First 12 3 4 5 6 7 Last

Core Scaffolding Systems

Every component is manufactured within strict dimensional tolerances to guarantee rapid on-site erection, seamless structural compatibility, and high load distribution.

Ringlock Scaffolding

Multi-directional modular system designed for complex geometry, industrial maintenance, and façade access.

Cuplock Scaffolding

Node-lock node design engineered for heavy-duty shoring and slab support.

Kwikstage Scaffolding

Wedge-fix system built for rapid manual erection in general building construction.

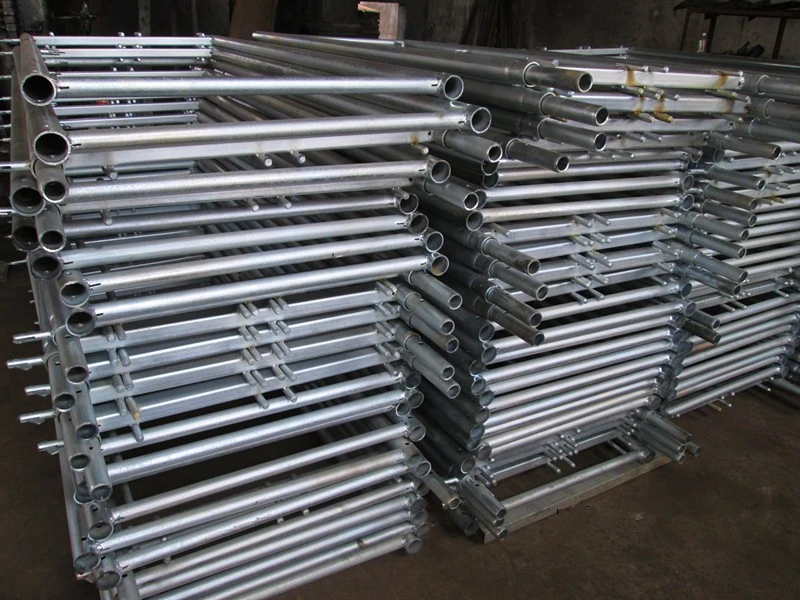

Frame Scaffolding

Walk-through and mason frames configured for standard wall construction and plastering.

Tube & Clamp Scaffolding

Independent, versatile scaffolding using standard 48.3 mm steel tubes and forged couplers.

Supporting Components

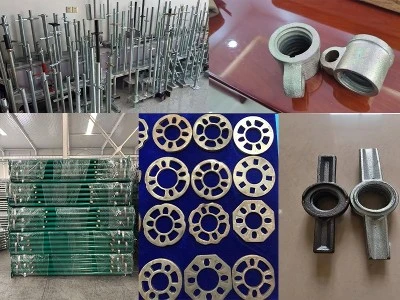

Steel walk boards, adjustable base jacks, U-head jacks, drop-forged couplers, toe boards, and stair access units.

Engineering & Manufacturing Advantages

1. Material Integrity (Q235 & Q355 Steel)

Primary load-bearing standards and ledgers are manufactured from structural carbon steel grades Q235 and Q355. This raw material selection provides higher yield strength, superior impact resistance, and extended fatigue life under repeated heavy construction loads compared to commercial-grade alternatives.

2. ISO 1461 Hot-Dip Galvanizing

Surface protection relies on a metallurgical zinc bond created via hot-dip galvanizing.

Performance: The coating layer prevents substrate oxidation in high-humidity, coastal, and high-salinity marine environments.

Operational Value: Extends the replacement cycle for rental fleets and eliminates recurring rust-maintenance overhead on site.

3. Precision Production Infrastructure

Component dimensional consistency is maintained through automated manufacturing processes:

CNC tube cutting and automatic punching machines.
Precision-aligned robotic welding fixtures.
Mandatory pre-shipment trial assemblies to verify locking pin engagement and squareness.

4. International Standard Compliance

Manufacturing workflows and tolerances align with global structural specifications:

Europe: EN 12810 & EN 12811

UK: BS Standards

Australia / New Zealand: AS/NZS Standards

United States: OSHA Project Requirements

Technical Specifications

Parameter	Specification Detail
Material Grades	Q235 / Q355 Structural Carbon Steel
Surface Treatments	Hot-Dip Galvanized (Standard Export), Powder Coated, Painted
Tube Dimensions	Outer Diameter: 48.3 mm
System Configurations	Ringlock, Cuplock, Frame, Kwikstage, Tube & Clamp
Connection Mechanisms	Wedge Lock, Cup Lock, Drop-Forged Clamps
Quality Control	9-Step Inspection Workflow (Raw Material to Pre-Shipment Audit)
Logistics & Packaging	Heavy-Duty Steel Pallets, Steel Straps, Weather-Resistant Wrapping
Production Capacity	High-Volume Output with Rapid Turnaround & Stock Availability

Industry Applications

Commercial Construction

Structural concrete pouring, slab formwork support, and exterior façade installation.

Industrial Plant Maintenance

Access platforms inside active oil refineries, petrochemical plants, and power generation facilities.

Bridge & Infrastructure

Heavy-duty shoring towers, tunneling access, and municipal engineering support.

Shipbuilding

High-salinity resistant systems for dry dock and hull construction staging.

Quality Assurance Workflow

To eliminate structural deformation and dimensional errors, every production batch passes a 9-step inspection process (Inspection reports available upon request):

Raw material mill certificate verification
Chemical composition checks
Mechanical property testing (tensile and yield)
Tube outer diameter and wall thickness inspection
Automated and manual welding penetration checks
Galvanizing coating thickness measurement
Full-scale trial assembly verification
Packing safety and strapping inspection
Final pre-shipment audit

OEM & Custom Manufacturing

We support private-label manufacturing and project-specific engineering execution:

Customized tube wall thicknesses and specialized steel grades.
Non-standard bay dimensions and proprietary connector configurations.
Company logo embossing, stenciling, and export-optimized bundle packaging.

FAQ

Q: What types of scaffolding systems do you manufacture?

A: We manufacture Ringlock, Cuplock, Kwikstage, Frame Scaffolding, Tube & Clamp Systems, H Frame Scaffolding, Adjustable Props, Steel Planks, Base Jacks, and a full range of accessories.

Q: What steel materials do you use?

A: The main structural components are manufactured from Q235 or Q355 structural steel, selected according to customer specifications and project requirements.

Q: Do you provide hot-dip galvanized scaffolding?

A: Yes. Hot-dip galvanizing is our most common surface treatment for export markets because it provides long-term corrosion protection and reduces maintenance costs.

Q: Can your scaffolding meet European standards?

A: Yes. Products can be manufactured according to EN 12810, EN 12811, and other regional standards depending on project requirements.

Q: Do you support OEM branding?

A: Yes. We provide OEM services including logo marking, customized packaging, technical documentation, and private labeling.

As one of the most professional scaffoldings manufacturers and suppliers in China, we have world-leading production equipment and strong manufacturing capabilities. Please feel free to buy high quality scaffoldings at competitive price from our factory.
