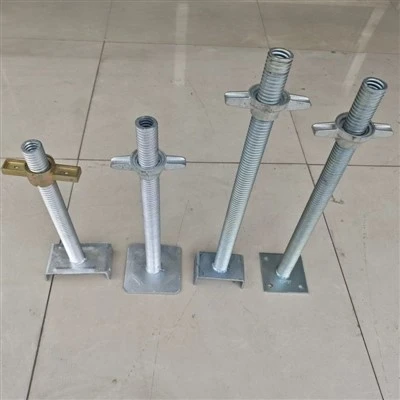

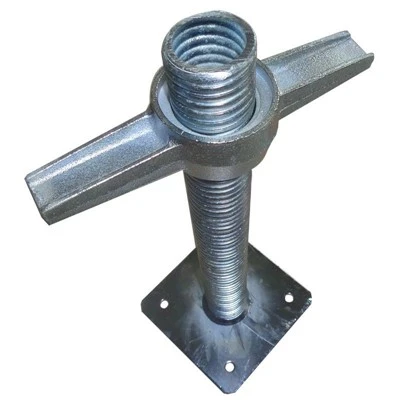

Adjustable Screw Jack

Adjustable Screw Jack
Details:
The ajustable Screw Jack is the adjustable base for modular system scaffolding. It is used as the starting bases for scaffolding. It can be adjusted in height to compensate for uneven surfaces so that the scaffold is always at a level. Safe working load of approx 4 tons each.
This adjustable screw jack for scaffold is made of sturdy galvanized stainless steel and will surely come in very handy on any work site. Its' rust-resistant properties ensure this product's increased durability, so you're sure that you're getting more than money's worth. Because it can be adjusted over an 18-in range, this robust screw-jack is sure to provide a solid foundation for scaffolding frames. It's especially recommended for scaffolding along external walls.
Send Inquiry
Description
Send Inquiry

Features

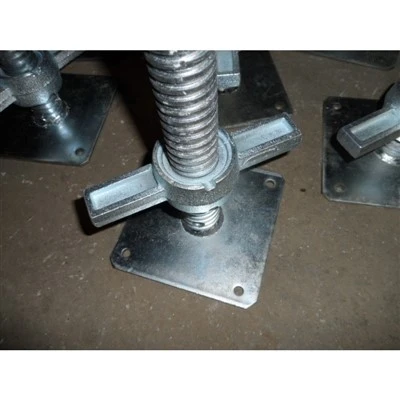

The Base Plate has holes in each corner for securing (nailing) to Mud Sill
The Screw Jack base plate allows your frame set to be leveled on uneven surfaces
The Nut on the Screw Stem is High-Strength, Forged Steel for durability.There is a cut in the threads of the Screw Stem, 150mm from the top, to prevent the Nut from coming off, and to keep the Screw Jack from being over-extended.
Zinc plated steel to prevent/minimize rusting





screw jack base 21

screw jack base 11

Hollow Base Jack / Screw Jack for System Scaffolding



DescriptionSpecificationWeight (kg)
Hollow Base JackØ38x5x700mm, 150x150x8mm4.84
Ø38x5x600mm, 150x150x8mm4.43

solid hollow screw jack base1screw jack base pitch types1



Why Choose Us



At Wellfit , you will not only find standardized adjustable scaffold base jacks but also customized scaffold screw jacks to suit your specific requirements.

We manufacture adjustable scaffold base jacks with thread diameters from OD.34mm to OD.60mm to work with different scaffolding systems.

The adjustable scaffold base jacks with OD.38mm thread diameter is the most popular scaffold screw jacks. It is suitable for most scaffolding systems, especially ringlock scaffolding and cuplock scaffolding.

The adjustable scaffold base jack with a OD. 48mm thread diameter has been selected as the scaffold foot in OD.60mm verticals for shoring frame scaffolding systems.

Wellfit's scaffolding screw jacks are available in electro-galvanized (zinc plated) or hot-dip galvanized finishes to suit different project budgets as well as durability requirements.

Tell us your requirements for adjustable scaffold base jacks and get consistently competitive prices from Wellfit
