Formwork Waler Plate
Waler plate is a formwork accessory widely used in concrete building works. People also call it tie rod plate, tie rod nut plate, anchor plate or z-bar waler plate. This square steel plate has one center hole, using with concrete tie rods on site.
This formwork waler plate always works together with tie rods, formwork wing nuts and hex nuts. It fits well with 15mm,17mm tie rod sets, and also matches 20mm,22mm tie bar systems. Both cold-rolled and hot-rolled tie rods can work with steel waler plate for your shuttering works.
We supply different thickness about this waler plate, such as 5mm and 10mm. Multiple surface finishes are available for anti-rust position. You can pick yellow zinc plated, white zinc plated or electric galvanized waler plates for different construction environments.
As a reliable China manufacturer for formwork accessories, we produce heavy-duty waler plates for various concrete formwork projects. We offer OEM/ODM to fit your special formwork system requirements.
Alternative names: tie rod plate, tie rod nut plate, anchor plate, z‑bar waler plate, steel waler plate
Matching parts: concrete tie rods, formwork wing nuts, hex nuts, formwork soldiers
Compatible systems: 15mm /17mm tie rod sets, 20mm /22mm tie bar systems, cold‑rolled & hot‑rolled tie rods
Core function: spread concrete load, reduce panel stress, prevent formwork bulging and moving
Available thickness: 5mm, 10mm
Surface finish: yellow zinc plated, white zinc plated, electric-galvanized
Custom service: OEM/ODM
Contact with us,and get your competitive price now.
Different Sizes for Waler Plates
We supply a full range of standard-size waler plates for formwork jobs. It contains square Waler Plates, round Waler Plates and rectangular waler plates for different sites. Common square sizes include 120×120mm, 115×115mm. We also keep regular round and rectangular waler plates in stock. Besides standard sizes, we can produce other sizes according to your drawings.
These steel waler plates fit all concrete formwork systems. You can use them for wall formwork, slab formwork, column formwork, beam formwork and stair formwork .
In steel formwork, aluminum formwork or wood timber formwork, these waler plates work well with your form tie and tie-rod assembly. They hold your tie-rod system stable while concrete gets poured.When concrete gets poured,they can keep your tie-rod system tightly.
Round Waler Plates
Rectangular Waler Plates

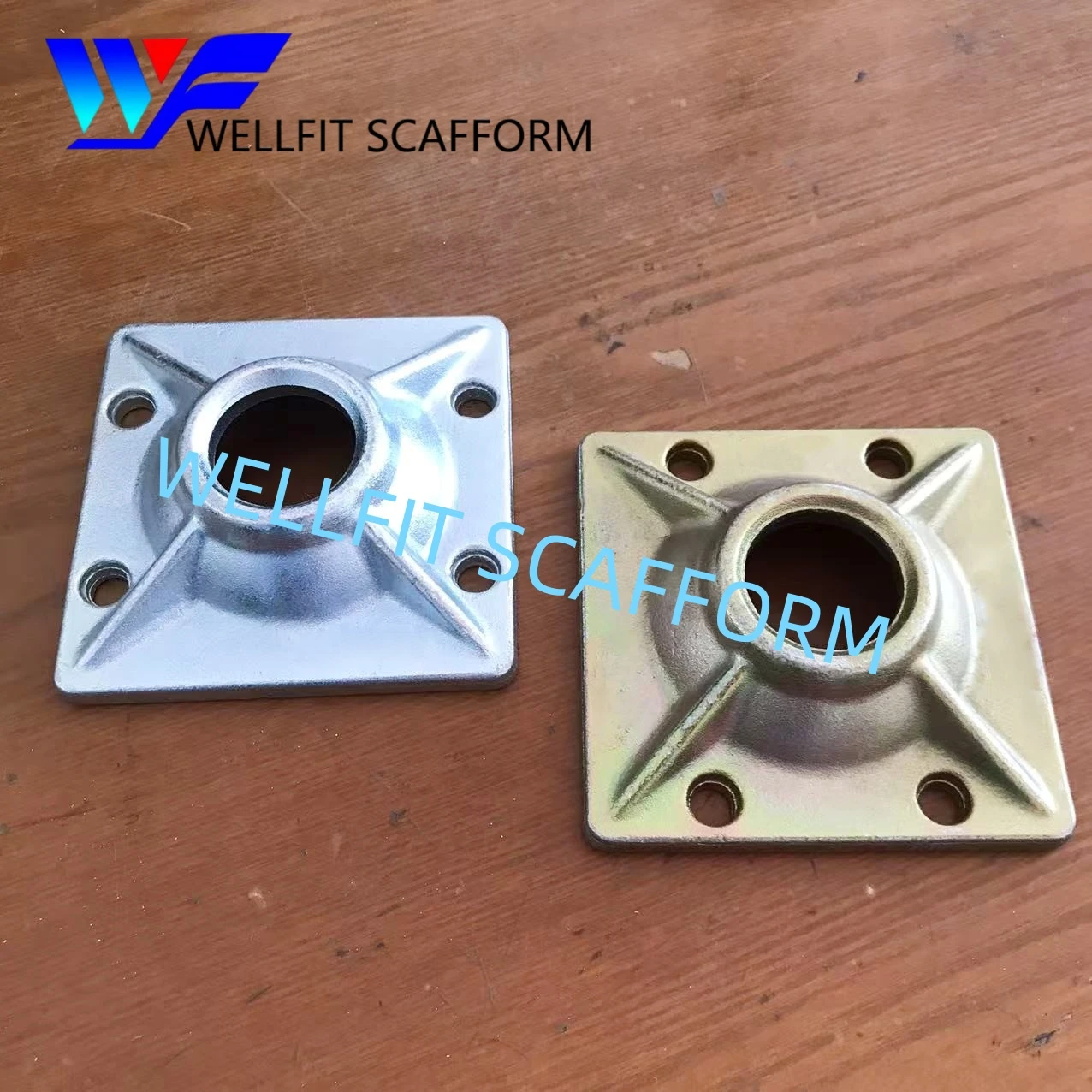

Square Waler Plates

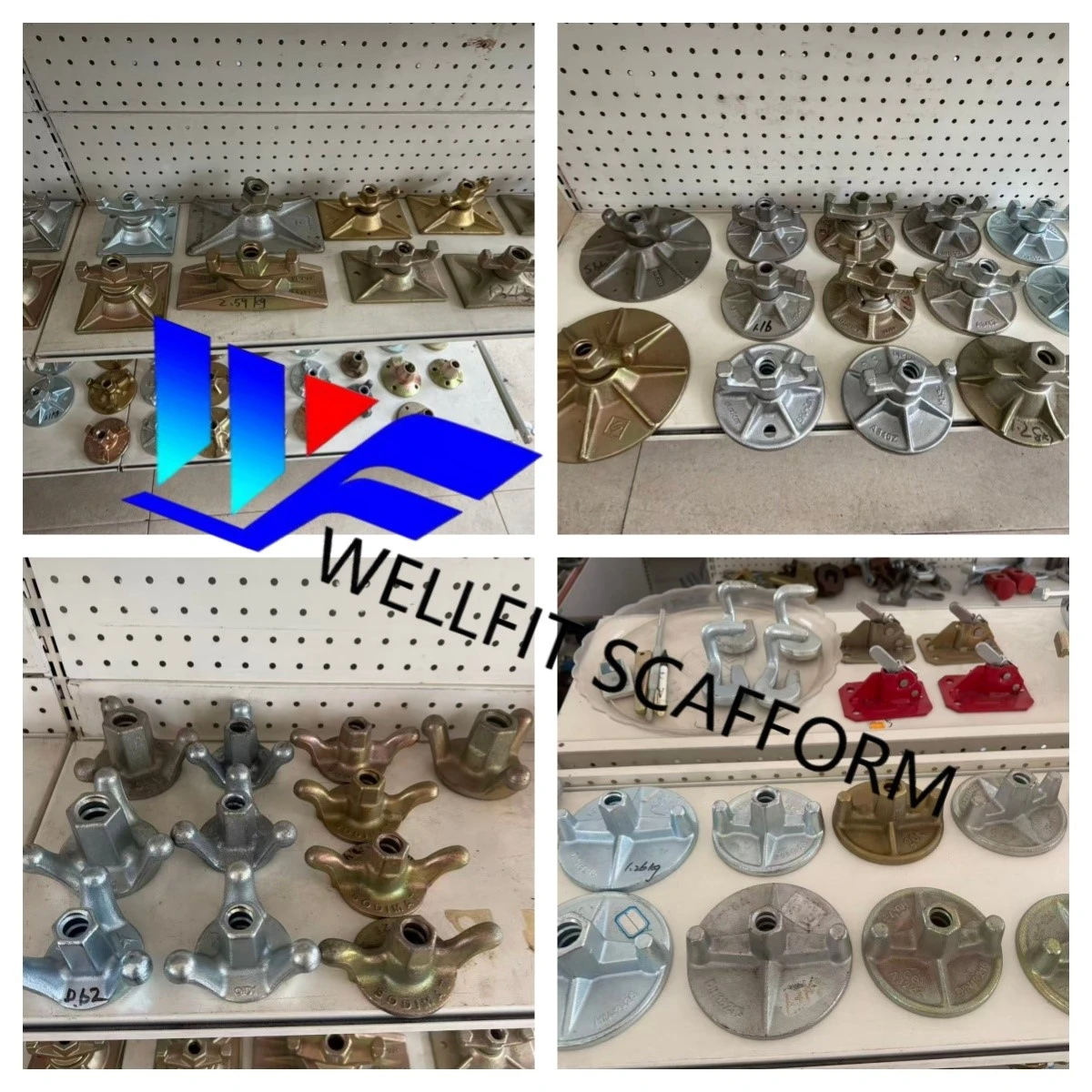

Combination Plate Nut: Waler Plate With Wing Nut Assembly
You can use waler plate together with formwork wing nut to make a complete combination plate nut . Wellfit is a professional manufacturer，that can supply all types of formwork accessories，including waler plate、wing nut and combination plate nut .It works for wall, slab and column formwork on many building sites. Using this formwork nut means less work for your workers. It helps you save site labor, working time and your project costs.
🔹 Formwork Waler Plates
🔹 Formwork Tie Rods
🔹 Formwork Wing Nuts
🔹 Combination Plate Nuts
🔹 Formwork Clamps
🔹 Tekko Clips
🔹 Drop‑Forged Tekko Clips
🔹 Formwork Hex Nuts
🔹 Formwork Cone & Water Stopper
🔹 H20 Timber Beams
🔹 Aluminium Formwork Beams
🔹 Film Faced Plywood
As one of the most professional waler plate manufacturers and suppliers in China, we have world-leading production equipment and strong manufacturing capabilities. Please feel free to buy high quality waler plate at competitive price from our factory.
