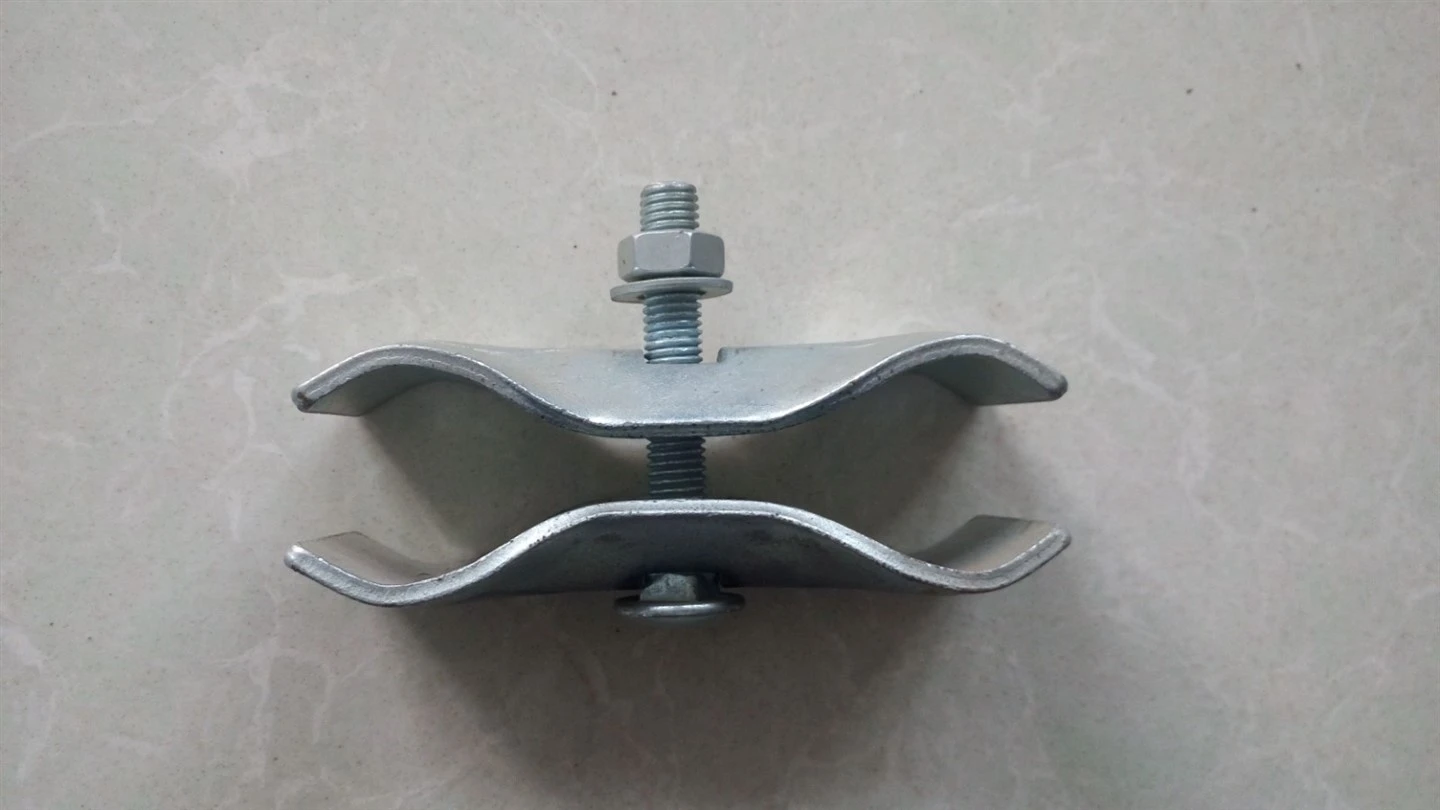

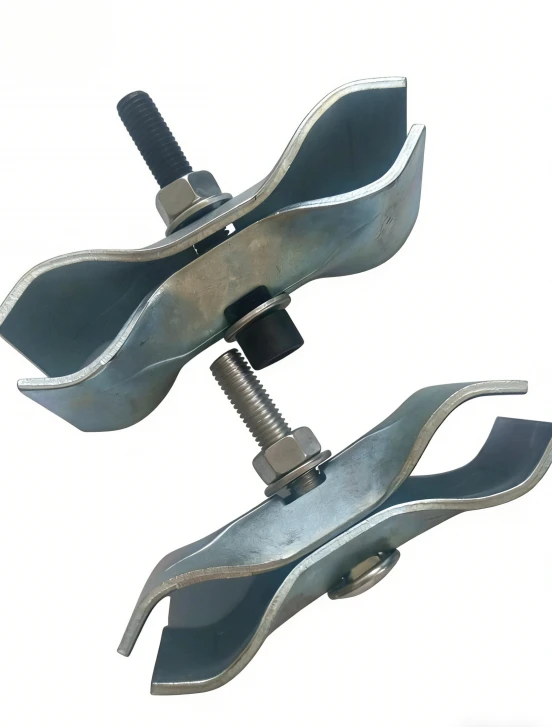

What is Fence Coupler

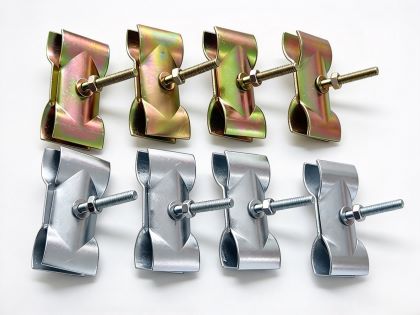

Also known as fence panel coupler or scaffolding fence coupler. The scaffold fence coupler, also called fencing clamps, is used to connect vertical poles of scaffold mesh panels and temporary scaffold fence panels. It firmly locks adjacent fence panels together for construction hoardings, crowd control barriers and pedestrian panels. We supply both pressed steel fence coupler and forged fence coupler for your different project requirements.
Key Features
Made of Q235 high-strength steel plates or solid forged steel
Compatible with scaffold tube outer diameter OD42mm and OD48.3mm
Equipped with 4.8/8.8 class scaffold bolts and nuts
Available in E-galvanized or hot dip galvanized surface treatment
Easy to install and disassemble, reusable scaffolding fittings
Lightweight scaffolding fittings for fast site assembly
Specification
|
Item |
Type |
Size mm |
Weight |
Grade |
Finishing |
|
Fence Coupler |
Pressed Coupler |
OD42 |
0.36KG |
S235 |
E-gal & HDG |
|
Fence Coupler |
Pressed Coupler |
OD48.3 |
0.40KG |
S235 |
E-gal & HDG |
|
Fence Coupler |
Forged Coupler |
OD42 |
0.50KG |
S235 |
E-gal & HDG |
|
Fence Coupler |
Forged Coupler |
OD48.3 |
0.55KG |
S235 |
E-gal & HDG |
Application for scaffolding fence coupler

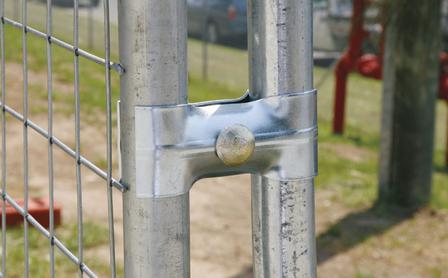

Our scaffold fence couplers are widely used for temporary construction fence, scaffold mesh panels, hoardings, crowd control barriers and pedestrian panels on building sites. As common scaffolding clamps and fittings, they secure temporary fencing panels reliably.

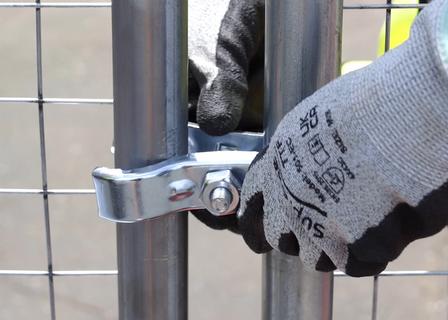

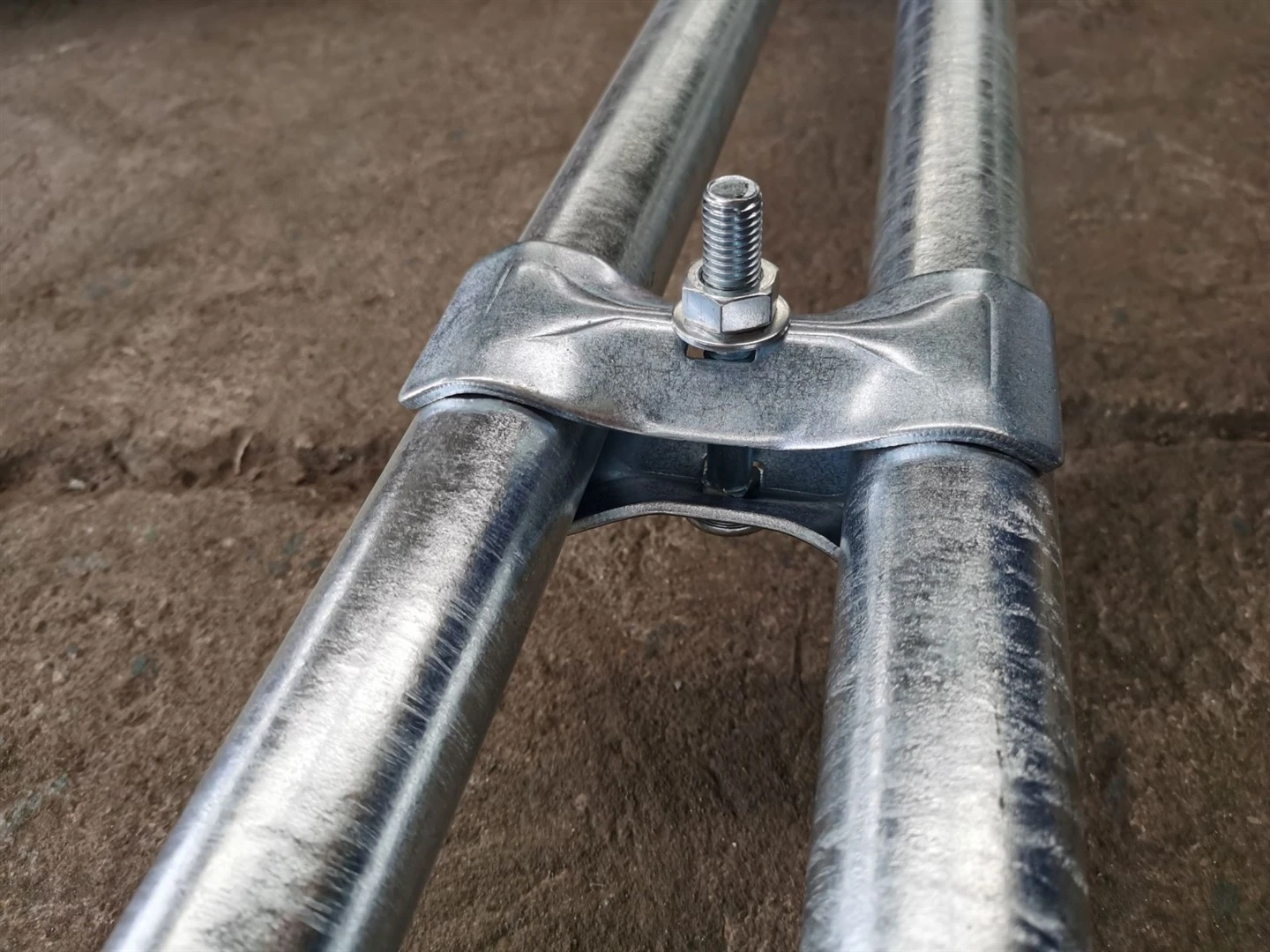

How to install the fencing clamps
- Put two fence posts side by side.
- Fit the coupler over both posts.
- Tighten the bolt with a spanner.
- Fit one coupler top and one bottom.
FAQ
Q: What pipe sizes do fence couplers fit?
A: Our fencing clamps support scaffold tube outer diameter OD42mm and OD48.3mm.
Q: What surface finishes are available?
A: E-galvanized(E-gal) and hot dip galvanized(HDG) options are available. HDG offers better anti-corrosion performance for outdoor use.
Q: Can you supply customized scaffold fence couplers?
A: Yes, we accept OEM scaffolding fittings according to your drawings or samples.
Q: Are you a manufacturer of scaffold fence coupler?
A: Yes, we are a scaffold fence coupler manufacturer in China, supporting bulk orders.
