Products Description

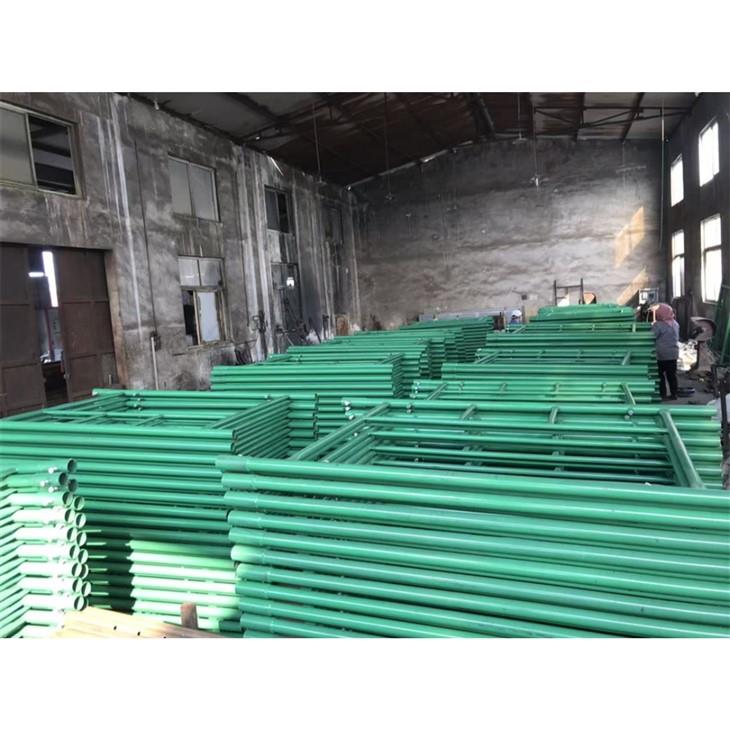

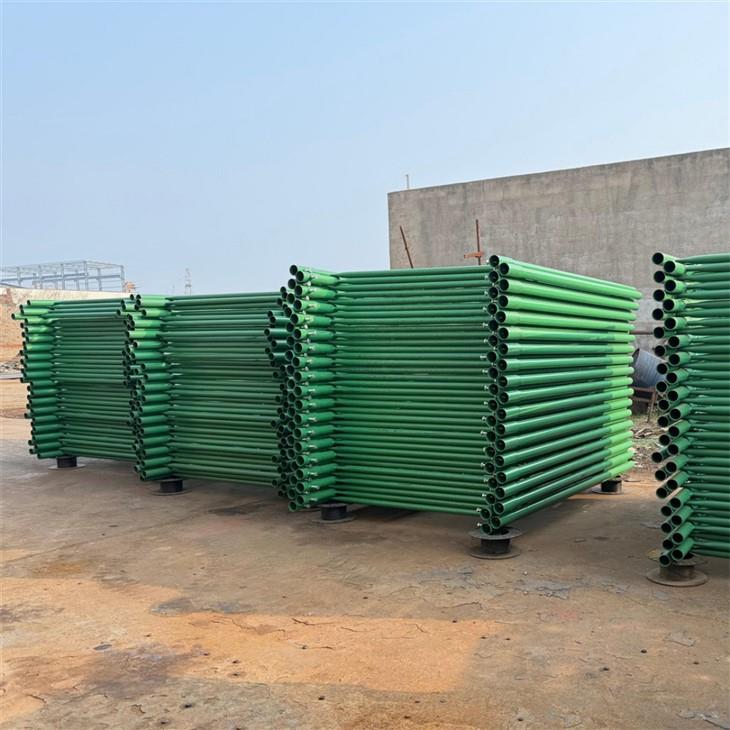

Ladder Frame Scaffolding
Wellfit Scafform manufactures ladder frame scaffolding shipped to Asia, Latin America, USA, and Canada Countries.
You can find 1219mm and 914mm ladder frames for Asia countries.While for the USA and Canada, there are mason frames, narrow frames, include 2',3'& 5' width. To Latin Americans, you can find 2m and 1m height ladder frame scaffolding here.
Traditional ladder frame scaffolding is made from O.D1.625" or O.D 1.68" vertical tubes.You can find heavy-duty ladder frame verticals in O.D 1.9" (48.3mm) and 2.37"(60.3mm). Wellfit customs your ladder frame scaffolding too.
Send us your ladder frame requirement with a size and quantity list to get a competitive price from the China manufacturer now.
|
Ladder Frame scaffolding |
||||
|
Item Code |
Width |
Width(mm) |
Height |
Height (mm) |
|
1 |
5′ |
1524 |
4′ |
1219 |
|
2 |
5′ |
1524 |
5′ |
1524 |
|
3 |
5′ |
1524 |
6'6″ |
2032 |
How to Choose Frame Scaffolding?
If you are looking for scaffolding frames, simply tell us which country are you from. We will give your country a scaffolding frame suggestion for your choosing
If you have any exact scaffolding frame photos/image style, you can show us the image. We are full sizes of each type of scaffolding frames.
When you have no idea which type of frame is suit for your construction loading. Tell us your safety load requirement, Our engineers will help you on the scaffolding frame design and quantity calculation.
More than scaffolding mainframe types and sizes, you can also find all frame scaffolding system components and parts here. Scaffolding cross braces tubular type and angular type, single guard rails for normal lock pin and snap-on lock pin, side bracket tubular and angle type, adjustable screw jack base solid type and hollow type. scaffolding aluminium plank and steel walk board, access scaffolding stairs, scaffolding steel ladder and aluminium ladder etc
Scaffolding Frame Surface Treatment
In scaffolding frame surface treatment, there are powder-coated, painting and galvanizing.
Powder Coated Scaffolding Frame: Powder Coated is the most popular scaffolding frame treatment in the USA country. This surface treatment is applied in all types of scaffolding frames: Traditional walk thru, mason frame, ladder frame, box frame, narrow frame and hi load shoring frame. Powder-coated scaffolding frame is very smooth and shiny surface. Before coating, there is a blasting process. Thus powder-coated scaffolding frames are with very strong adhere strength. It is more durable than painting scaffolding frame in corrosion resistance and anti outside force.
Painting Scaffolding Frame: Painting scaffolding frame is the cheapest surface treatment, compared to powder coated or galvanizing finishing. Painting scaffolding frames are requested in south-east Asia and Africa countries. More maintenance cost is required for Painting scaffolding frame in long term consideration.
Galvanizing Scaffolding Frames: There are hot dip galvanizing and pre-galvanizing(GI) scaffolding frames. Pre-galvanized scaffolding frames are made from the galvanized tube. After welding, the GI Scaffolding frames need further paint on the welding line which place zinc are damaged after the welding process. Hot dip galvanized is galvanizing after welding. Thus there is no weakness point compare to GI scaffolding materials. While hot dip galvanizing zinc thickness is thicker than GI Frames. In anti-rusty consideration, hot-dip galvanizing scaffolding frames are the most durable type in long life span. Thus hot dip galvanized scaffolding frame is export for sale and for the rental companies.
