Cuplock Scaffolding For Slab
Cuplock scaffolding is a highly efficient, modular scaffolding system widely used in global construction, industrial maintenance, and infrastructure projects. Renowned for its unique cup-and-blade locking mechanism, it has become the preferred choice for contractors seeking safety, speed, versatility, and cost-effectiveness on job sites.
The system includes decking beams as the main beam and infill beams as the secondary beam. Decking beams form the mainframes of the slab formwork system, while the infill beams fill the space inside the decking beams. Thus, it is also mentioned as decking beam scaffolding, deck slab formwork, deck slab shuttering, formwork decking system, etc.
The concrete slab formwork system is formed by pre-engineered modular parts with standard sizes and cup and blade connecting and locking mechanisms. This makes the cuplock formwork system easy to assemble and disassemble, saving time in concrete construction projects.
In the cuplock slab formwork system, self-locked drop heads lock the decking beams. This makes the cuplock shuttering more rigid and resistant to difficult construction conditions, weather, etc. The cup and lock scaffolding deck system is safer and more load-resistant with the auto-locking drop heads and intense beams.
Specification：
|
Code No. |
Specification |
Size (mm) |
Weight (KG) |
|
L 250 |
Cup Lock Scaffold Ledger 2.5m |
OD48.3 |
8.9 |
|
L200 |
Cup Lock Scaffold Ledger 2.0m |
OD48.3 |
7.6 |
|
L180 |
Cup Lock Scaffold Ledger 1.8m |
OD48.3 |
6.85 |
|
L160 |
Cup Lock Scaffold Ledger 1.6m |
OD48.3 |
6.15 |
|
L150 |
Cup Lock Scaffold Ledger 1.5m |
OD48.3 |
5.8 |
|
L130 |
Cup Lock Scaffold Ledger 1.3m |
OD48.3 |
5.1 |
|
L120 |
Cup Lock Scaffold Ledger 1.2m |
OD48.3 |
4.75 |
|
L100 |
Cup Lock Scaffold Ledger 1.0m |
OD48.3 |
4.05 |
|
L090 |
Cup Lock Scaffold Ledger 0.9m |
OD48.3 |
3.7 |
|
L060 |
Cup Lock Scaffold Ledger 0.6m |
OD48.3 |
2.65 |
Our cuplock scaffolding components include:
1.Brown Film Faced Plywood

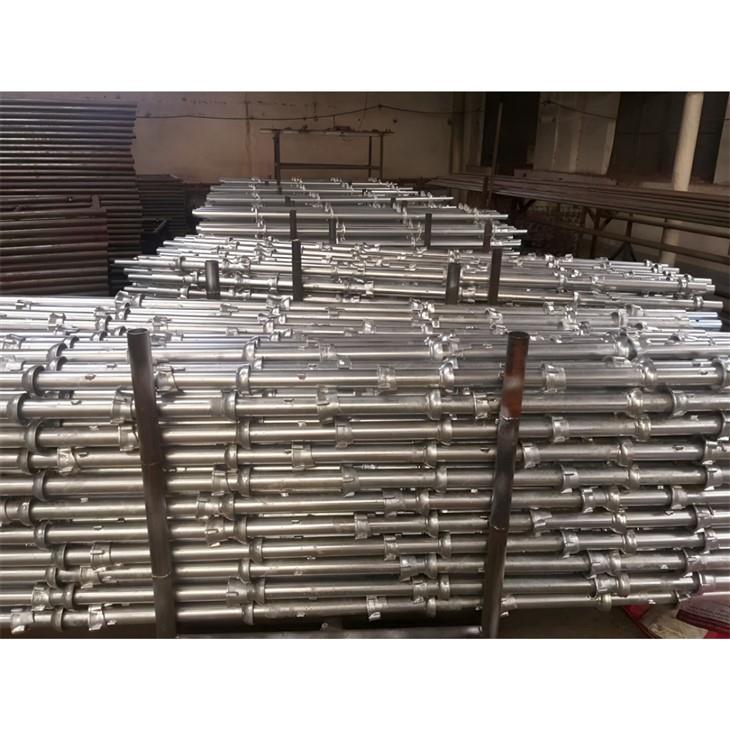

2.Cuplock Standard with Top Cups and Bottom Cups

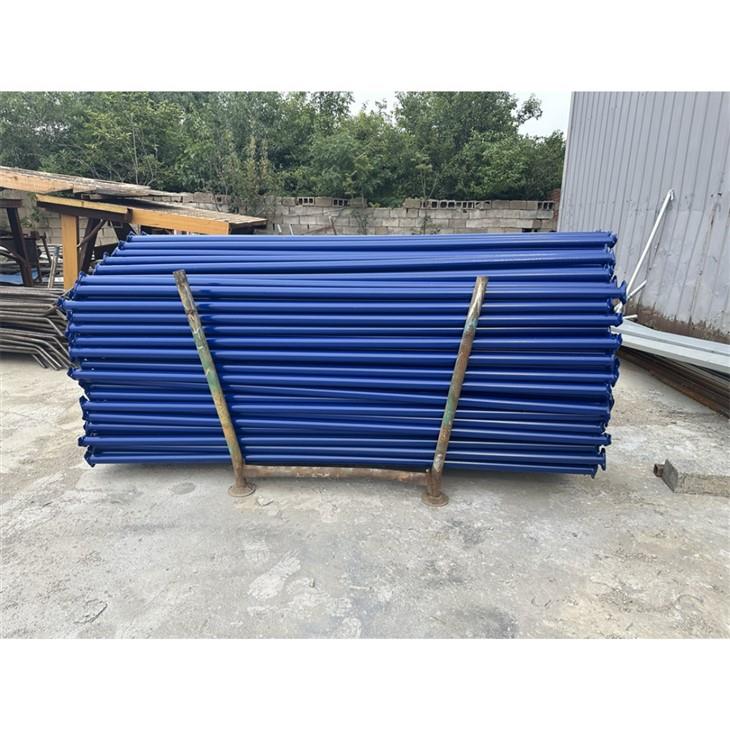

3.Cuplock Ledgers with forged ledger blade (Horizontal Parts Connecting Cuplock Verticals)
4.Screw Jacks for adjustment and levelling
Wellfit Scafform produces all styles of scaffolding systems. You can find here walk through scaffolding frame system, mason frame scaffolding system, stucco&plastering scaffolding system, H frame scaffolding system, main frame scaffolding system, shoring frame system, ladder frame scaffolding etc.
Each style of scaffolding frame system, there are a lot of sizes, Contact us for more details!!
If you want any scaffolding system and have a lot of questions. Just send us a mail. Wellfit has full experience not only in manufacturing but also in design, safety, technical data etc. If you do not have an import license or scaffolding system import experience, Wellfit is able to help you on the service in scaffolding material import custom clearance, scaffolding delivery till sending the scaffolding system material to your project or stockyard.
