Products Description
|
Inner Tube Dia |
40mm/48mm |
|
Outer Tube Dia |
48mm/57mm |
|
Tube Thickness |
1.8mm/2.0mm/2.2mm/2.5mm |
|
Adjustable Length |
500-800mm / 1070-1820mm/ 1600-2900mm / 1750-3120mm 1982-3352mm / 2000-3500mm 2290-3550mm / 2590-3950mm 2600-4720mm / 3200-4870mm |

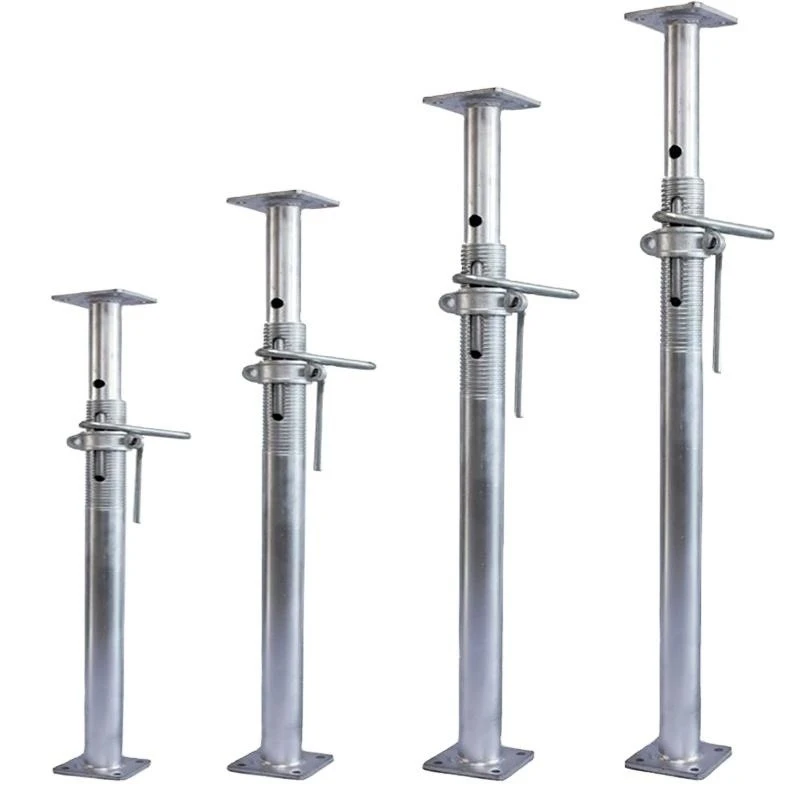

Light Duty Prop Comes With The Following Features
Drilled inner (with accurate precision and burr-free) every 100 mm so as to enable the adjustment of the prop;
- S235JR steel inner and outer pipe
- 8 mm pitch threaded adjustment sleeve with welded handles;
- Male threaded directly onto the outer pipe, or welded, obtained through rolling-forming i.e. without removing material;
- Lower plate, available in flat or rounded version;
- Upper plate available in three versions (plate, crosspiece or fork);
- High resistance safety hook for fixing between the inner and outer pipe;
- Anti-shearing system to enable working under safe conditions at all times;
Anti-disengagement system which enables quick release of the prop with little effort; Reinforcement at the foot consisting of mounting an extra 200mm tube on the outer one in proximity of the lower plate;
Why Choose Us
Our factory produce a complete scaffolding solution such as ringlock vertical, diagonal brace, ledger, base collar, transom, bracket. We offer one-stop sourcing for all scaffolding components and accessories. With 13 years of exporting exprience, products are warmly welcomed in the USA, Sweden, Norway, Spain, France, Australia, Brazil, Chile, Peru, Vietnam, etc.
