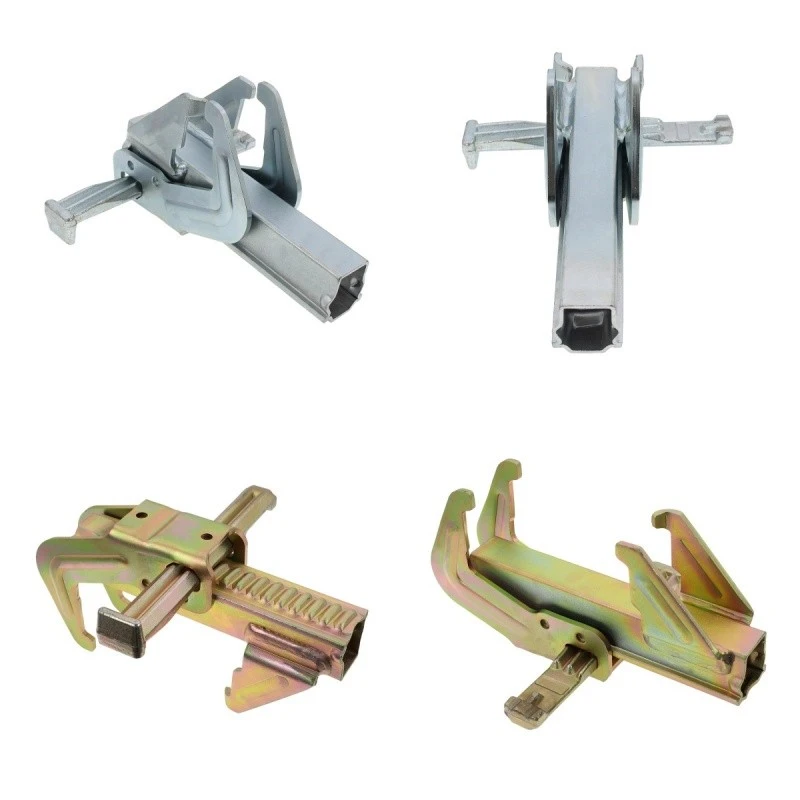

Formwork Panel Clamp

Built with a T-wedge self-locking structure, this clamp allows easy installation: insert two formwork panels into the frame, then strike the T-wedge top lightly. As it slides down automatically, it finishes both alignment and locking at once:

• Smooth alignment: Double-sided serrated guides keep panels flush and in line, avoiding height difference and offset.
• Tool-free locking: Firm mechanical locking is achieved without bolts, wrenches or any extra tools.

Practical example: For 3-meter steel formwork in shear wall projects, workers only need 3–5 taps to finish alignment and fixing. Each connection takes just 30 seconds instead of 5 minutes, making on-site work far more efficient.

This formwork clamp provides stable and secure connections, which can effectively prevent grout seepage and formwork shifting, ensuring safe and smooth concrete pouring.

Working Principle:

• The serrated guide structure closely engages with the formwork frame, delivering excellent shear and pull-out resistance to restrict horizontal displacement under concrete pressure.
• The C-shaped locking hooks firmly grip the formwork from upper and lower sides, preventing panel deformation and grout loss during vibration and pouring.

Example: A single clamp can withstand a lateral force of approximately 15kN for 4m column formwork. Even under high-frequency vibration, joints remain sealed and stable without leakage or movement, resulting in a smooth and uniform concrete finish after stripping.

Specially engineered to match most standard formwork systems, helping to reduce inventory pressure and overall procurement expenses.

Working Principle: The C-shaped opening, serrated pitch and mounting dimensions are designed in line with international formwork standards, enabling compatibility with mainstream modular formwork systems from Europe and domestic markets.

Example: On construction sites with mixed brands of formwork, only one type of the clamp is required for all connecting tasks. This significantly reduces the variety of accessories and cuts down overall project costs.

Constructed to ensure extended service life and consistent performance, even in harsh and heavy-duty construction environments.

Working Principle:

• Made of forged/cast Q345 high-strength carbon steel, with excellent impact resistance to stand repeated use and on-site impacts.
• Hot-dip or electro-galvanized surface provides strong anti-corrosion performance, ensuring long-term use in humid and outdoor environments.

Example: In tunnel projects with high humidity and dust, the clamp can be reused over 500 times with little corrosion and stable clamping force, greatly reducing replacement and maintenance costs.
