Type and specification
| size | Tie rod size | Processing | Amtdle tdenthouse |
| Combi Nut 115mm | 15/17 (D15, D16) | Cast Iron | 1.05KG |
| Combi Nut 120mm | D15/17 (D15,D16) | Cast Iron | 1.20KG |
| Combi Nut 130mm | D20 | Forged |
1.3 KG |

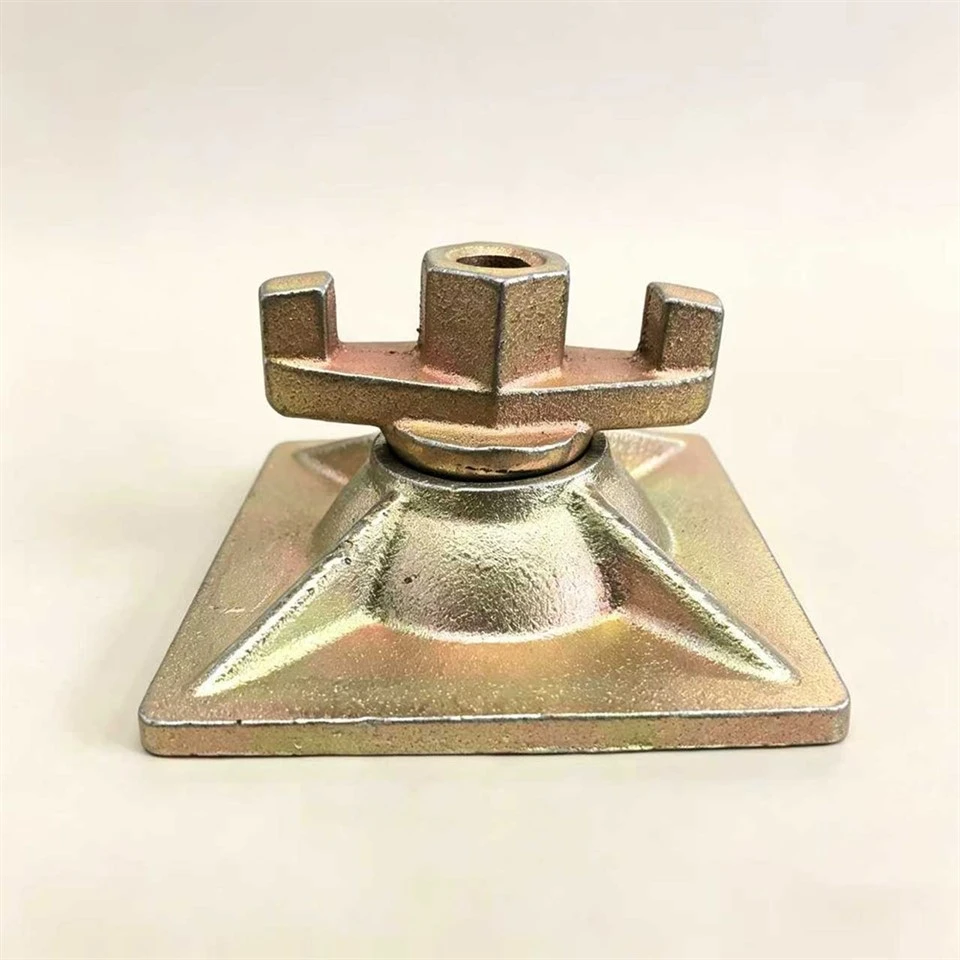

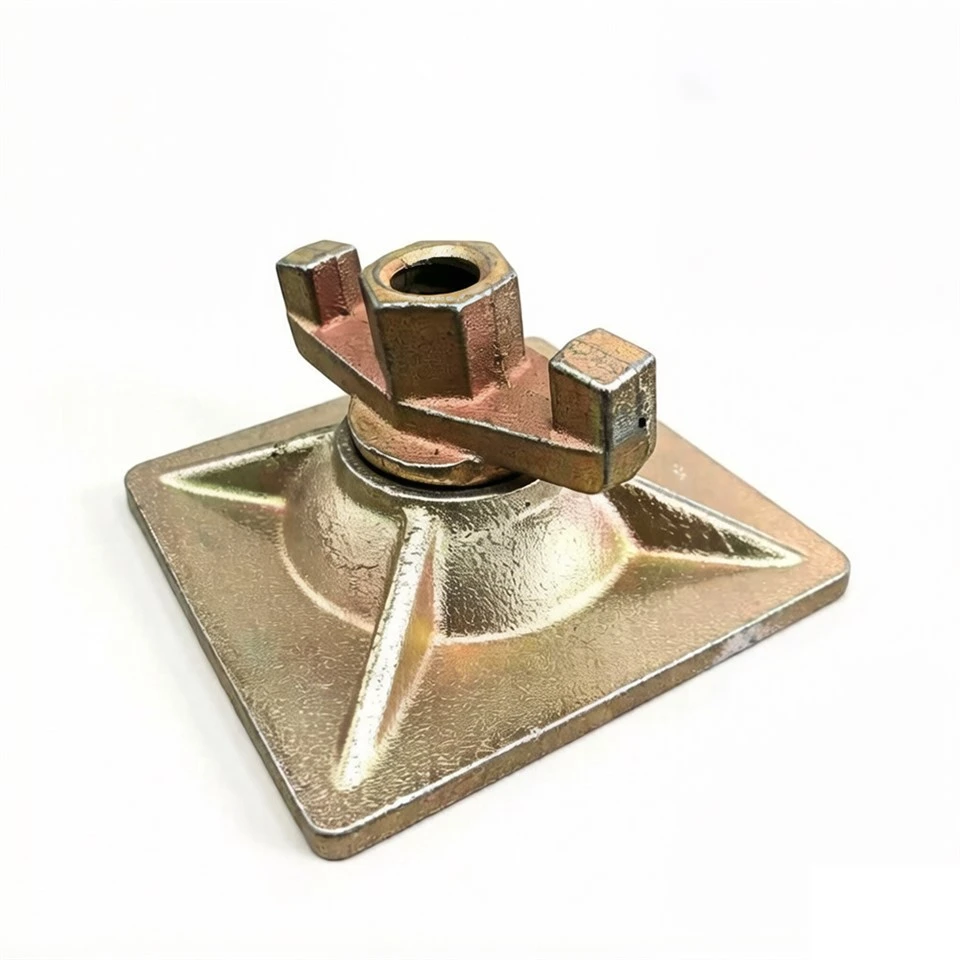

This heavy-duty formwork accessory is made of ductile cast iron or drop-forged steel, with a galvanized finish for corrosion resistance. It consists of a square bearing plate and a swivel wing nut assembly, designed to work with tie rods (typically D15/D17) to clamp and secure formwork panels during concrete pouring.
The swivel mechanism allows the nut to tilt, making it ideal for angled or battered formwork where the tie rod is not perpendicular to the wall. The square plate evenly distributes clamping pressure to avoid damaging the formwork, while the wing design enables quick tightening with a hammer or spanner. It provides high tensile strength (up to 180kN) and is reusable for multiple construction cycles, making it essential for shear wall, column, and slab formwork applications.
Formwork Combi Nut Size and Specifications
Formwork Combi Nut Sizes
| 15/17mm (D15, D16 and D17) |
Work with 15/17mm Tie Rod or Dywidag Tie Bars |
| 20/22mm (D20) |
Work with 20/22 Tie Rod and Tie Bars |
Types of The Wingnut Pivot Plates
| Drop Forged Type |
Doka and Peri Type. Forging from steel round bars |
| Cast Iron Type |
Cheaper. More Popular |
|
Forged type Combi Wingnut Pivot Plate Features More Durable Surface More Smooth and Nice More Stable In Quality Take Higher Load and Better Weight Bearing Expensive In Cost |
Cast Iron Type Combi Nut Features Cheaper In Cost More Efficient In Production and Quicker Delivery More Popular Using Meet Up Load Capacity Requirement(More than 190KN for 15/17mm)
|
Shapes of Super Plate of the Combi Nut
The formwork combi nut has one wing nut and one super plate, and a pivot fixes the two components. In concrete, the super plate is used as a waler to avoid leaking during concrete and forming.
There are two shapes of the super plate of the pivot nut:
Square Plate Pivot Nut
Round plat Pivot Nut
Square Super Plate Pivot Nut Sizes: 120x120mm or 115x115mm
Round Super Plate Pivot Nut Sizes: OD130mm
Customized sizes are available according to your drawing or samples.
Formwork Combi Nut Finishing
E-galvanized is the surface finishing of the formwork combi nut. You can use white or golden colour for galvanizing your swivel wing nut plate.
Formwork Combination Nut Type and Weight
| No | Items | Tie Rod Size | Types | Weight |
| WDB115-15 | Combi Nut 115mm | 15/17 (D15, D16) | Cast Iron | 1.05KG |
| WDB120-15 | Combi Nut 120mm | D15/17 (D15,D16) | Cast Iron | 1.20KG |
| WDB130-20 | Combi Nut OD130mm | D20 | Forged | 1.3 KG |
Order Your Formwork Combi Nut (Dome Nut, Wingnut Pivot Plate, Swivel Wing Nut) Today!
Take your formwork setup to the next level with our Formwork Combi Nut, also known as the Dome Nut, Wingnut Pivot Plate, Super Plate, Swivel Wing Nut with Plate, or Swivel Wing Nut Anchor Plate. Whether you're constructing residential, commercial, or industrial projects, our high-performance formwork nuts will ensure stability, safety, and efficiency.
Contact us now for a quote or to place your order!
Key Installation Tips
Angle Adaptation: The swivel joint's main purpose is to compensate for angled tie rods. Never force the nut to align straight if the rod is at an angle-let the swivel pivot naturally.
Even Tightening: Always tighten nuts on both sides of the formwork gradually and evenly. Uneven pressure can cause the formwork to bow or leak concrete.
Load Capacity: Do not exceed the nut's rated tensile strength (160kN).
Corrosion Protection: The galvanized finish prevents rust, but avoid scratching the coating during installation to maintain durability.
