Basic Info.
| Size | 38*4*600mm |
| Weight | 4.50kg |
| Material | Q235 |
| Surface Treatment | Zinc Plated |
| Color | Silver Galvanized, Color Galvanized, etc. |
| Package | Pallet |
| HS Code | 73084000 |
Product Advantages
High Load Capacity
Forged from Q235 high-quality carbon steel, it offers a safe load capacity of 1-3 tons per unit, ensuring structural stability under heavy loads.
01
Superior Corrosion Resistance
Features hot-dip or electro-galvanized surface treatment, passing over 48 hours of salt spray test to resist rust in harsh weather conditions.
02
Efficient Adjustment
Full-threaded design allows wide height adjustment (300-600mm). Compatible with wrenches for quick elevation, significantly boosting construction efficiency.
03
Cost-Effective & Durable
Precision-engineered to resist vibration, it can be disassembled and reused more than 50 times, reducing long-term project costs.
04
Precise Fit
The U-shaped plate securely holds H20 timber beams, aluminum beams, and steel sections, ensuring uniform load distribution.
05
Application

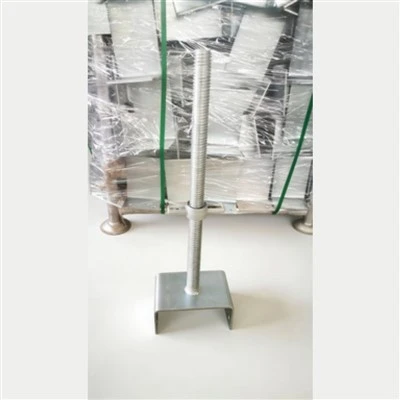

Adjustable U Head Jack is widely used in various construction projects and provides convenient support for industrial construction.
High-Rise Buildings
Formwork support systems for concrete shear walls, floor slabs, and transfer floors.
Infrastructure
Formwork support for bridges, tunnels, and viaduct box girders and columns.
Industrial Venues
Construction of large-span steel structures in airports, exhibition centers, and stadiums.
Temporary Works
Temporary load support for stage stands, construction platforms, and large enclosures.
Why Choose Us?
Vs. ordinary jacks: our products adopt integral forging process with 20% higher load capacity; thicker galvanized layer extends service life by 50%; anti-slip locking nut for safer operation.
We have extensive experience in product manufacturing. To meet your diverse requirements, we accept customization based on your drawings and specifications.
Quality is fully guaranteed. Our products have been exported to more than 20 countries for many years and have won the trust of customers worldwide.
FAQ
Q1: Are thread diameter & adjustable length customizable?
A: Common thread diameters include 30mm, 32mm, 38mm, and 48mm. Standard adjustable lengths are 400mm, 500mm, and 600mm, with custom options available based on project requirements.
Q2: Which scaffolding systems is it compatible with?
A: It is widely compatible with Ringlock, Cuplock, Frame, and tube & clamp scaffolding systems, simply by matching the vertical pipe diameter.
Q3: How to ensure product integrity during transportation?
A: Packaged in woven bags or strapped onto steel pallets (typically 300-400 pieces per pallet). Professional warehousing and logistics ensure safe transportation without damage or deformation.
