Products Description

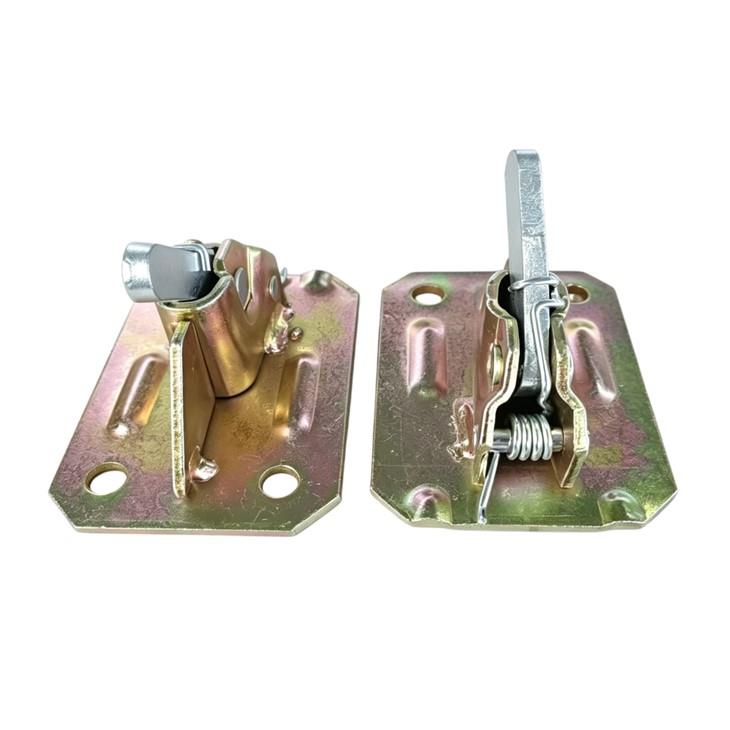

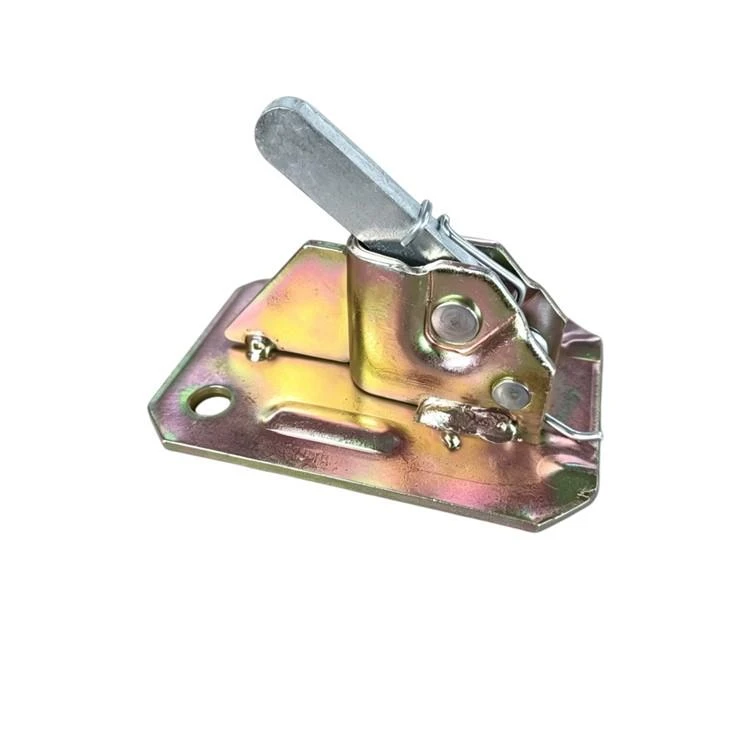

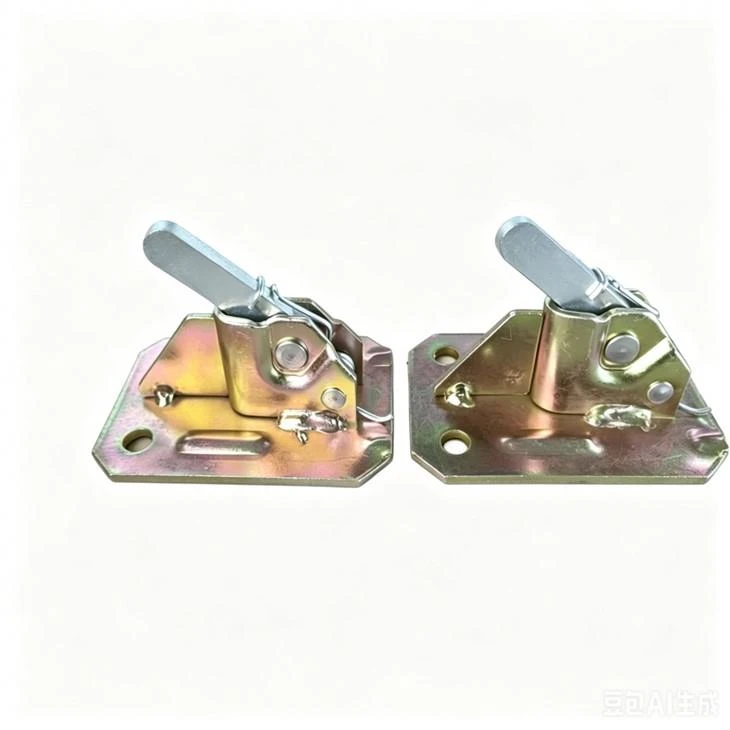

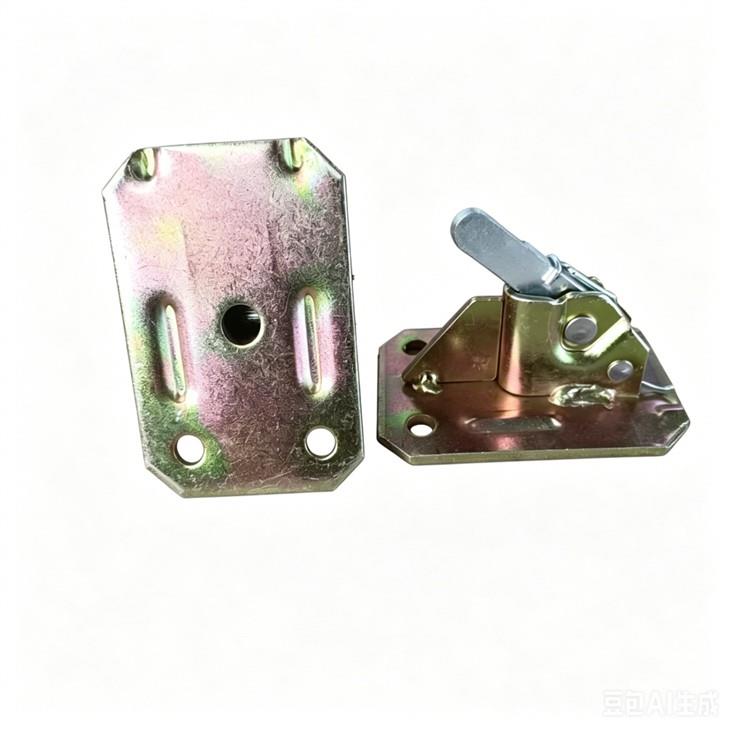

Formwork Spring Clamp (Pressed Rapid Clamp)
The Formwork Spring Clamp is a type of formwork clamp used to tighten tie rod systems in concrete formwork. It is also called the pressed rapid clamp. It is made of pressed steel plates with heat-treated teeth and spring clip sets.
Formwork pressed rapid clamp can work together with the tie rod in diameter of be 5-12mm. The dimension of the spring clamp is 75mm in width and 105mm or 110mm in length. The thickness of the rapid clamp is 3-6mm. As a leading manufacturer, we can customize different sizes and dimensions according to your require.
Specification:
|
Product Name |
Formwork Spring Clamp |
|
Material |
Carbon steel |
|
Size |
75x105mm*3mm-----rebar size (5-10mm) 75x110mm*3.75mm----rebar size (5-12mm) |
|
Weight |
0.33kg/0.42kg |
|
Finish treatment |
Glavanizing/Painted/Powder Coated |
|
Packing |
50pcs/bag or box,then packed on pallet or wooden box. Depend on your requirements
|
Formwork pressed rapid clamp can work together with the tie rod in diameter of be 5-12mm. The dimension of the spring clamp is 75mm in width and 105mm or 110mm in length. The thickness of the rapid clamp is 3-6mm. As a leading manufacturer, we can customize different sizes and dimensions according to your require.
Formwork rapid clamps are used to tighten and straighten rebars in concrete forming. There are two types of formwork rapid clamps in the tie rod forming system:
Cast Iron Rapid Clamps (Flat Clamp)
Pressed Rapid Clamps (Spring Clamps)
In rapid clamp assembly, a rapid clamp tensioner is an important tool to make the tie rod system easier to fix.
Usage： In construction, the concrete tie bar is inserted into the hole of the pressed steel rapid clamp. Open the clips and fix the tie into the formwork panels by using the spring clamp tensioner
For anti-rusty purposes, the pressed formwork rapid clamps are finished in zinc-plated(E-galvanized), coated and painted.
Except formwork rapid clamps, there are cast iron type (ductile) rapid clamps as well. Send us mail to get more details and prices.
