Adjustable Steel Shoring Prop
| Name | Adjustable Steel Shoring Prop / Acrow Prop |
| Material | Carbon Steel (Q235/Q345) |
| Surface treatment | Hot-dip Galvanized / Electro-galvanized |
| Adjustment method | Screw Thread + Locking Pin Dual Adjustment |
| Application | Construction; Used for Wall, Girder, Bridge... |
| Standard | Complies with EN 1065 / BS 1139 Standards |
| Packing | Bulk / Pallet / Wooden Case Packing |
Structure Components
Wide Product Range
Outer Tube: Main load-bearing steel pipe, with a base plate welded at the bottom.
Wide Applications
Inner Tube: Telescopic steel tube, with a top plate welded at the top.
High Strength

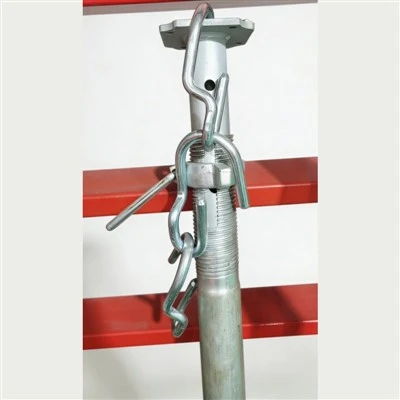

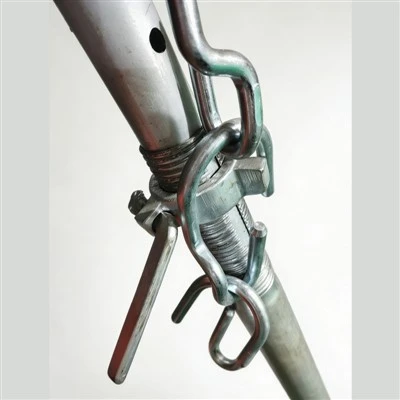

Adjustment Sleeve / Nut: Equipped with a handle, used for fine height adjustment.
Professional
Locking Pin / G-Pin: Used for positioning during coarse height adjustment.
Material
High Strength
Material: Q235 / Q345 high-strength carbon steel.
Professional
Surface Treatment: Hot-dip galvanized or powder coated for rust prevention.
Key Features & Advantages
High adjustability
Equipped with both pin-position coarse adjustment and threaded fine adjustment, allowing quick and accurate height setting without extra tools.
01
Strong load-bearing capacity
Made of high-strength steel with a rigid welded structure, providing stable vertical support and high resistance to compression and deformation.
02
Durable and corrosion-resistant
Surface treated with hot-dip galvanizing or powder coating, ensuring good rust resistance, long service life, and reusability.
03
Safe and reliable
Dual locking design prevents accidental retraction; clear load markings comply with international construction safety standards.
04
Easy transportation and installation
Lightweight telescopic design enables simple assembly, disassembly, stacking, and transportation, improving construction efficiency.
05
Working Principle
Height adjustment
The inner tube slides to reach the approximate working height and is fixed by a locking pin. The threaded sleeve then provides micro-adjustment for precise leveling.
Load transmission
Vertical loads from formwork or structures are transferred evenly through the top plate, inner tube, adjustment sleeve, outer tube, and base plate to the ground or supporting structure.
Stable support
The prop maintains rigid axial support to prevent structural settlement, deformation, or collapse during concrete pouring and curing.
Application Fields
Building construction
Used for vertical support of floor slabs, beams, columns, and wall formwork during concrete pouring.
Bridge and tunnel engineering
Applied to support bridge decks, box girders, and tunnel linings during construction and maintenance.
Building reinforcement and renovation
Provides temporary shoring for beams, slabs, and roofs during structural repair, reconstruction, and load transfer.
Industrial and infrastructure projects
Widely used in factory construction, infrastructure support, stage trusses, and emergency stabilization works.
