Cuplock Scaffolding System

The Cuplock Scaffolding System, often referred to as "CUPLOK," is a distinctive modular scaffolding system that has grown hugely in popularity for its versatility, easy setup, safety and robust stability. The cuplock scaffolding system has node-locking devices at every 500mm interval. There is no need for loose pins, wedges, or bolts, and it is very simple to erect and disassemble.

The 3.2 mm thickness of the high-yield and tensile-strength material makes the cuplock scaffold much lighter but able to bear heavy weight in shoring and construction. Such as building construction, industrial maintenance, and silo projects.

The Cuplock Scaffolding System consists of vertical standards or uprights that are connected horizontally by ledgers. The unique feature of this system is the cup and blade set up, which enables fast and secure interlocking of the components while negating the need for nuts and bolts.

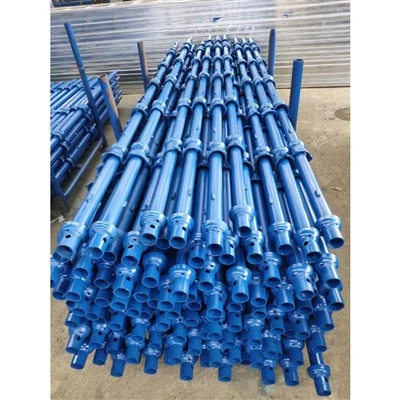

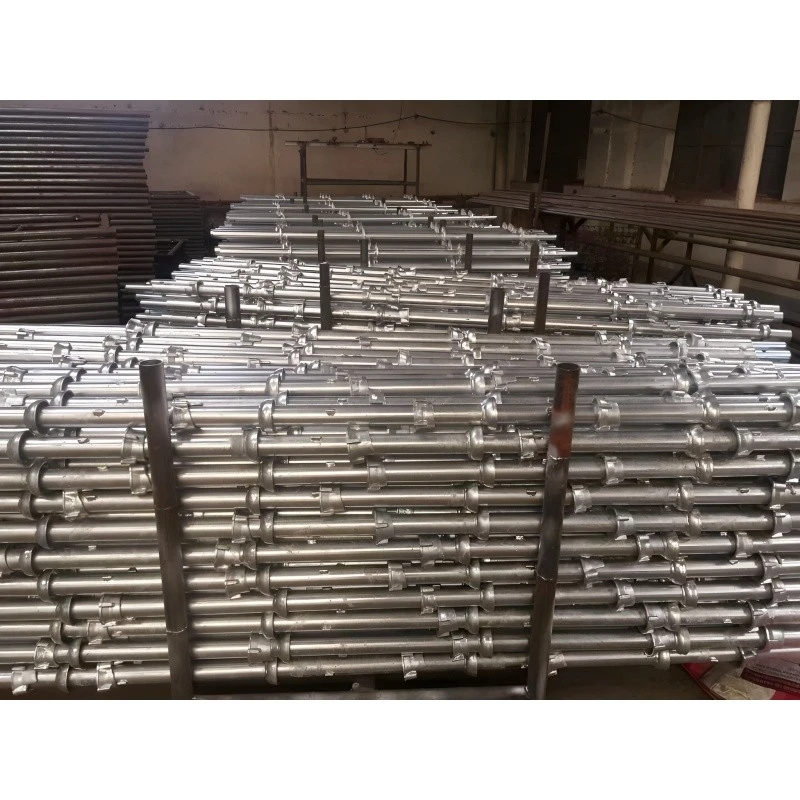

Verticals: Also known as standards or uprights, standards are the vertical tubes that form the structural backbone of the scaffold. They are typically made of Q235 steel tube 48.3*3.2mm, and are available in different lengths from 500mm-3000mm.

Horizontal: Also known as Ledger, that connect two adjacent standards, provide support for the scaffold platform and transfer weight to the standards. They are also made of Q235 steel tube 48.3*2.75/3.2mm,and are available in different lengths from 600mm-2500mm.

Transoms: Transoms are horizontal members that connect the ledgers to each other and help distribute weight evenly across the scaffold.

Base jacks: Used to level the scaffold on uneven ground, base jacks are adjustable steel tubes that attach to the standards at the scaffold base.

The major difference between Cuplock Scaffolding and traditional scaffolding is their design and assembly protocol. Cuplock scaffolding removes any need for the use of nuts and bolts when setting it up.

It is an extremely modular system which uses a unique node-point locking device, allowing four horizontal bars (or tubes) to be easily attached to the vertical and locked in place with a quick hammer strike. Fixed lower cups are constant half-meter intervals, while upper cups can be slid to secure the ledger's blade end in place.

Traditional scaffolding offers greater customization, but demands more time and precision during setup due to its reliance on nuts and bolts. The choice between the two depends on the project's scale, timeline, and the balance between rapid installation and customization needs.

In summary, Cuplock scaffolding distinguishes itself through its efficient interlocking mechanism, allowing for swift and secure assembly.

The cups are attached to the standards, and the ledgers have blades that fit into these cups, locking the components in place. This design not only speeds up assembly but also provides a strong and stable structure.

The signature cuplock scaffolding joint system comprises three key components: Top Cups, Bottom Cups, and Ledgers. The hollow center of the cups allows vertical bars to be easily slotted through, while ledgers secure the horizontal bars – all of which can be adjusted with Base Jacks and U-Head Jacks.
