Products Description
Push-pull props are a type of steel acrow props that are used to support wall and beam formwork. It aligns the formwork at an angle to transfer loads in concrete.
From structure, there are two kinds of push pull props, as follows:
1. One single push-pull prop includes top and bottom plates, inner and outer tubes and screw jacks, and jack nuts. The types of push pull props are customized for heavy-duty, light-duty, and medium-duty.
|
Product No., |
Closed |
Open |
Light -duty |
Medium-duty |
Heavy-duty |
|
1 |
1.140m |
1.829m |
2.0mm Tube |
3.2mm Tube |
4.0mm Tube |
|
2 |
1.850m |
3.124m |
2.0mm Tube |
3.2mm Tube |
4.0mm Tube |
|
3 |
2.080m |
3.352m |
2.0mm Tube |
3.2mm Tube |
4.0mm Tube |
|
4 |
2.690m |
3.962m |
2.0mm Tube |
3.2mm Tube |
4.0mm Tube |
|
5 |
3.300m |
4.876m |
2.0mm Tube |
3.2mm Tube |
4.0mm Tube |

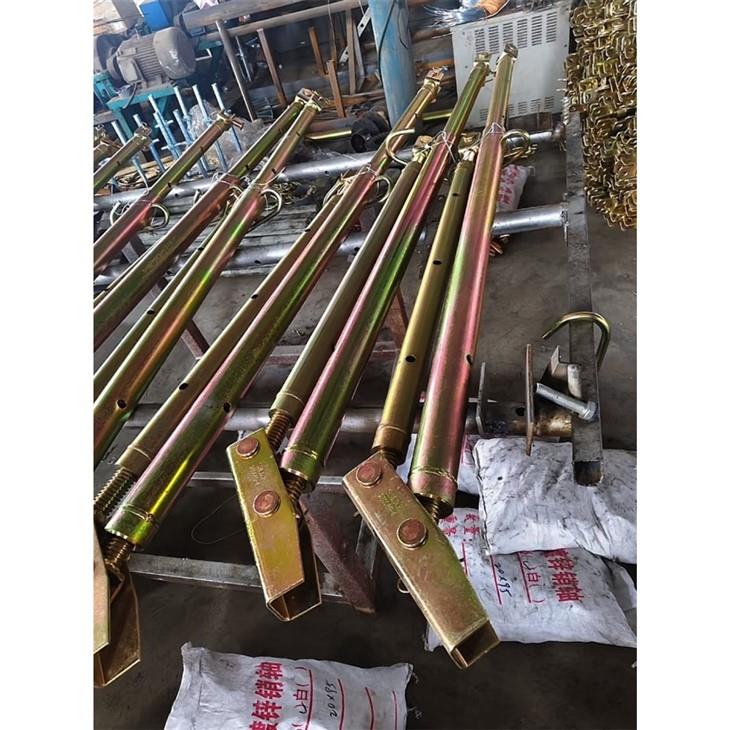

One single push-pull props Include an inner tube and an outer tube with swivel top and bottom plates. Parts as follows:
1. OD48.3mm inner tube with holes.
2. OD60mm outer tube with threaded sleeves
3. The top plate is fixed on the Inner tube by a bolt and nut
4. The bottom plate is fixed on the outer tube by bolt and nut
5. Prop Nuts6. G Pins
2.Double Braced Push Pull Prop, it is prefabricated in an adjustable range. One set of push pull props can be assembled by two braces, one long brace and one short brace. They are formed to the higher side and low side, two support points on the wall or beam falesework.
|
Item No., |
Short Brace |
Long Brace |
Tube Thickness |
|
1 |
815-1306mm |
1908-3418mm |
3.0-5.0mm |
|
2 |
1725-2211mm |
3105-5492mm |
3.0-5.0mm |
|
3 |
1200-2500mm |
3100-4500mm |
3.0-5.0mm |
|
4 |
800-1400mm |
1960-3060mm |
3.0-5.0mm |
Double braced push pull props with short and long brace for wall and column formwork. It includes a long brace and a short brace. The long and short braces are joined by a big push pull prop plate. Components of the double-braced push pull props: One long size push pull prop (adjustable)
One short size push pull prop (adjustable), One big bottom plate,two single plates at the top of each push pull brace
The design of each single push pull prop is customized in adjustable range, sizes of prop tubes and spindles, etc.
The most popular type of push pull props in wellfit scafform are as follows:
Push-Pull Props OD48/60mm: with Heavy Duty Prop Nuts and Bolted Base Plate On Inner and Outer Tube
Push-Pull Props Spindle Type: With Right and Left Threaded Inner Spindles.
Wellfit Scafform customize your push pull props
As a famous OEM scaffolding and formwork system manufacturer, we have 15 years of production experiences for global scaffolding and formwork companies. We have full knowledge of all system scaffolding and formwork parts and its function. Thus you can get a very professional scaffolding and formwork system customized design according to your safety load capacity requirement at different adjusting height.
