Products Description
Forged formwork anchor nuts are a necessary tool for concrete building, perfectly designed to complement your concrete tie rod system. This high-quality formwork wing nut ensures a secure, reliable connection between formwork panels during concrete pouring.
If you are looking for formwork accessories to optimize your concrete construction process, Please Contact WELLFIT Scafform! Our wing nuts are built for durability, ease of use, and long-lasting performance:
Specification：
|
Product Name |
Formwork anchor nut |
|
Process |
forged |
|
Types |
Two-wing nuts with combination plate |
|
Diameter |
12mm,14mm,15mm,16mm,17mm,20mm (Compatible with the diameter of the tie rod) |
|
Finish |
Silver or golden |
|
Material |
High-strength steel |
|
Packing |
Ton bag, pallets, and wooden cases upon your requirements |
|
Application |
Wall formwork/ Slab formwork/Column formwork/Beam formwork/Table formwork/ Climbing formwork/Tunnel formwork etc |
Shapes of Super Plate of the Combi Nut
The formwork combi nut has one wing nut and one super plate, and a pivot fixes the two components. In concrete, the super plate is used as a waler to avoid leaking during concrete and forming.
There are two shapes of the super plate of the pivot nut:
Square Plate Pivot Nut

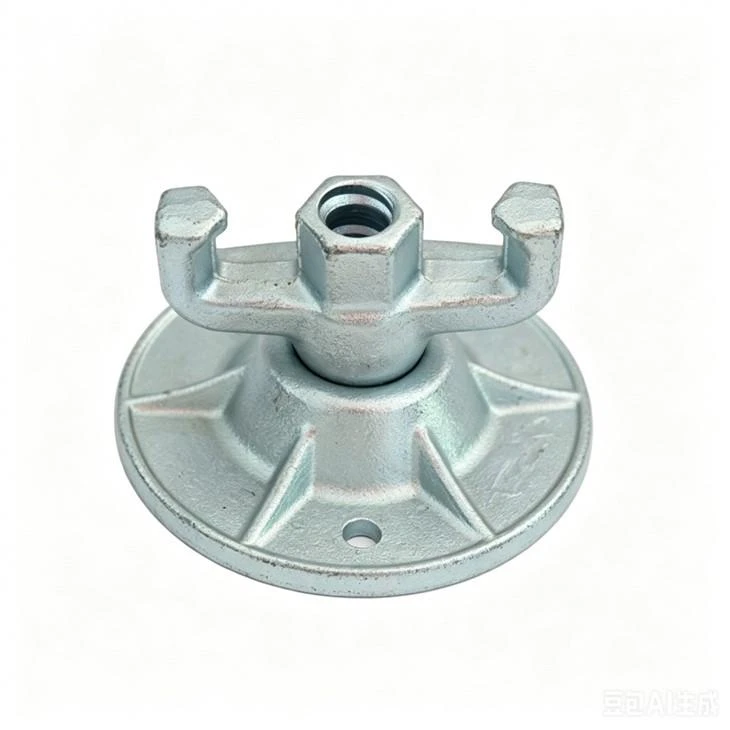

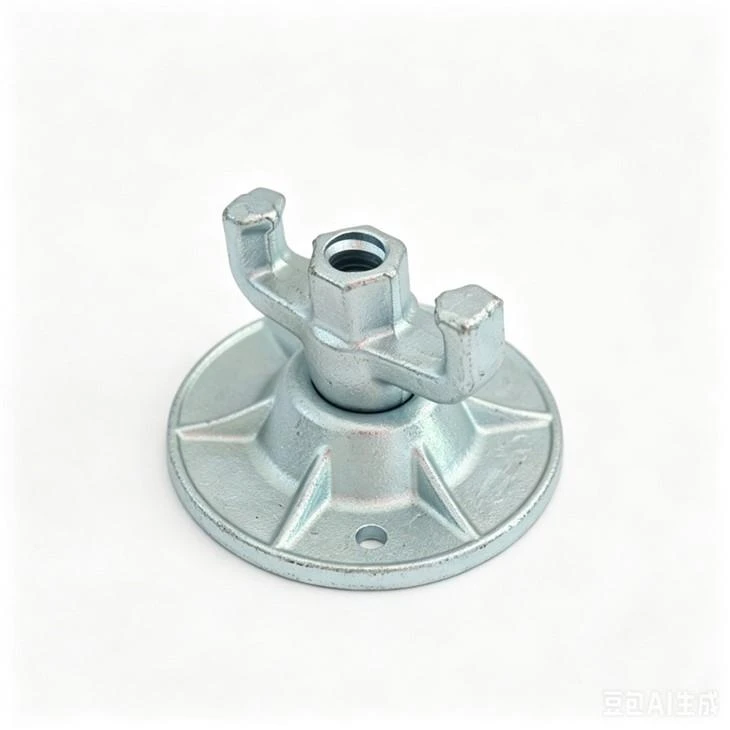

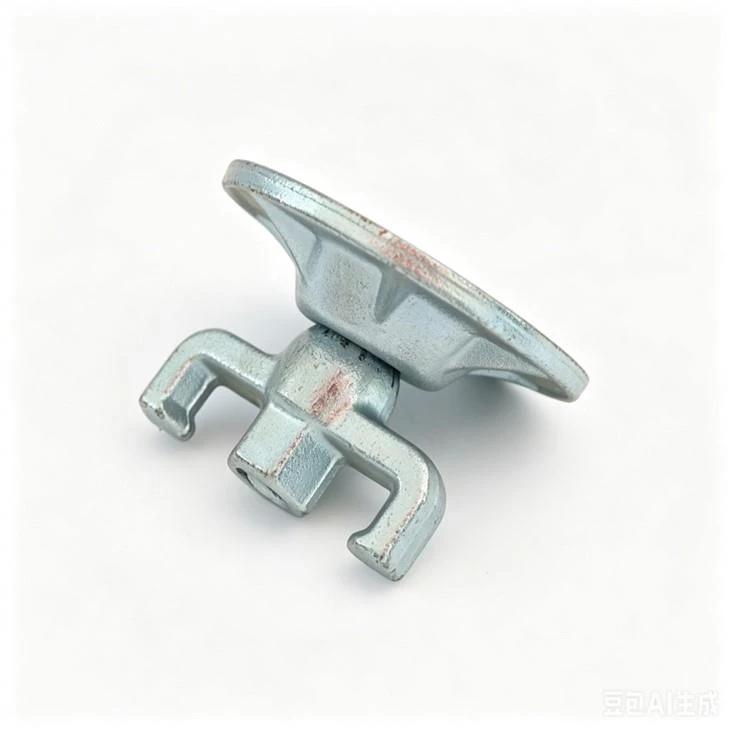

Round plat Pivot Nut
Square Super Plate Pivot Nut Sizes: 120x120mm or 115x115mm
Round Super Plate Pivot Nut Sizes: OD130mm
Customized sizes are available according to your drawing or samples.
How to choose a suitable size of formwork anchor nut for tie rods?
Some suggestions for your reference:
D12 Tie Rod Choose D12 anchor Nut
D14 Tie Rod Choose the D14 anchor Nut
D15 Tie Rod Choose the D15 anchor Nut
D16 Tie Rod Choose the D16 anchor Nut
D17 Tie Rod Choose the D17 anchor Nut
D20 Tie Rod Choose the D20 anchor Nut
Friendly reminder: If you choose a butterfly-type anchor nut, add a flange plate to the tie-rod system. If you choose an anchor nut with a flange plate or a combined nut with a swivel pivot plate, do not need to buy an extra flange plate. The anchor nut diameter is customized, and there is no impact on the Assembly of the tie-rod System
Forged type Combi Wingnut Pivot Plate Features:
More Durable
Surface More Smooth and Nice
More Stable In Quality
Take Higher Load and Better Weight Bearing
Expensive In Cost
Cast Iron Type Combi Nut Features:
Cheaper In Cost
More Efficient In Production and Quicker Delivery
More Popular Using
Meet Up Load Capacity Requirement (More than 160KN for 15/17mm)
Wellfit Customize Your Formwork System
As a famous OEM scaffolding system manufacturer, we have 15 years of production experiences for global scaffolding and formwork companies. We have full knowledge of all system scaffold parts and its function. Thus you can get a very professional scaffolding system customized design here.
Our scaffolding design not only considers your building size and plan. But also consider according to each formwork system components and parts safety load capacity etc.
Wellfit is not only to customize scaffolding system parts, we are also very professional in concrete formwork components and parts. Thus our design always customizes with formwork connection.
