Production Description
|
Product Name |
Ring Scaffolding Verticals |
|
Material |
Q235, Q355 |
|
Module |
48.3mm or 60.3mm |
|
Wall thickness |
3.25mm or 3.5mm |
|
Length of Verticals |
500/1000/1500/2000/2500/3000/4000mm |
|
Surface treatment |
Galvanized or Painted |
|
Packing |
Steel pallet or as your requirement |
|
Logo |
Customized logo is acceptable |
Features
Safety:
Ringlock scaffolding verticals are compatible with ledgers and diagonal braces using secure fixed wedge connections. This enhances the safety and stability of the system.
High efficiency and economic:
Light weight, simple structure, low maintenance, low cost,easy to set up and demolish, avoid loss of screws work and small clamps, the speed to form connections is 5 times faster than normal scaffoldings, and a worker can finish all the assembling by a hammer, also it can be lifted as a whole structure to save time and shorten the schedule.
Application:
Ringlock scaffolding is widely used in many construction projects, such as Civil & Building, bridge construction, industrial maintenance and access, interior decoration, bridge construction, stage erection,etc.
Connection Types
- Right-angled connections: Four small openings in the rosette facilitate right-angled connections.
- Connections at any angles: Four larger openings in the rosette enable connections at various angles.
- Spigot : Available with or without a spigot. The spigot can be connected using bolts or crimping.

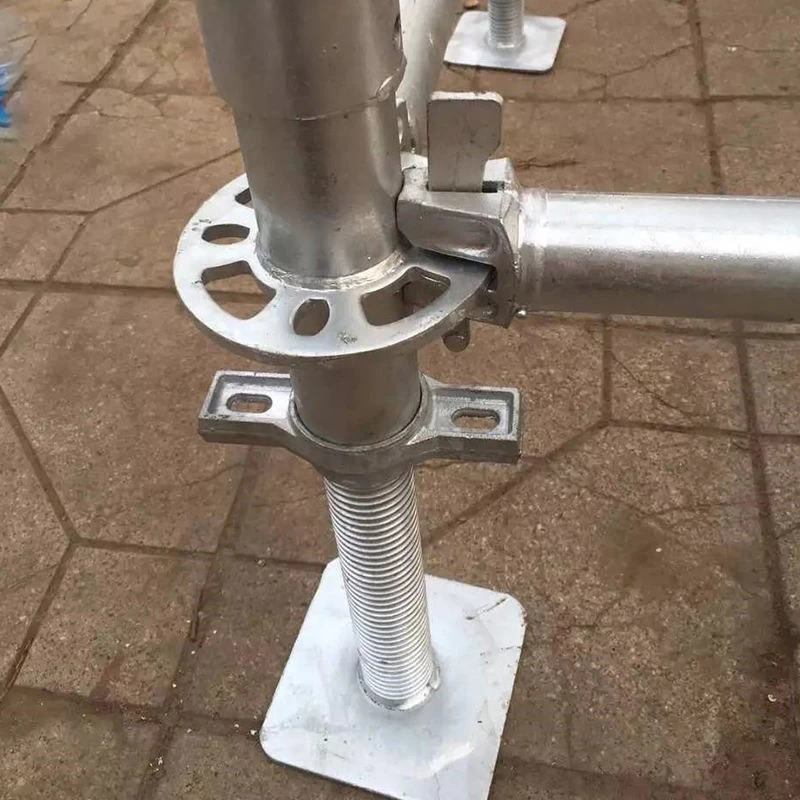

Supported on the base Jack or ground and the top end is connected to the upper vertical by the inner joint, all linked with another one. It can be set up to the required height according to engineering requirements. By connecting with 4 ledgers and 4 diagonal braces and steel planks, transoms can form a fully functional ringlock scaffolding system.
Why Choose Us
Our factory produce a complete scaffolding solution such as ringlock scaffolding, vertical, diagonal brace, ledger, base collar, transom, bracket. We offer one-stop sourcing for all scaffolding components and accessories. With 13 years of exporting exprience, products are warmly welcomed in the USA, Sweden, Norway, Spain, France, Australia,Brazil,Chile, Peru,Vietnam, etc.
